1. Product Introduction
1.1 Product Description

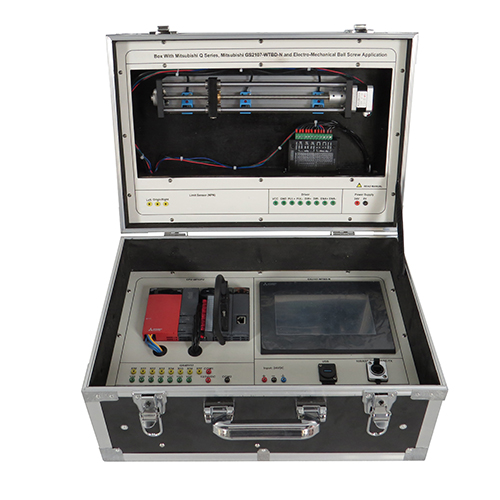

MR539E with Mitsubishi Q series, Mitsubishi GS2107-WTBD and motor ball screw application box is a practical training device designed for teaching mechatronics, automation, electrical engineering and other majors. The box is designed for motor transmission and HMI technologies. Through open wiring design, students can complete circuit connection, program writing and troubleshooting by themselves, and cultivate comprehensive engineering capabilities.
1.2 Product Features
(1) The key electrical interfaces of the motor ball screw application box are provided with terminal blocks to meet the needs of basic wiring and complex system construction.
(2) The motor ball screw application box and its components are fully configured and can be used in combination to complete the practical training content of various courses.
(3) The motor ball screw application box adopts a good safety protection system.
(4) The motor ball screw application box has good portability, reduces space occupation, and is convenient for training in different venues and environments.
(5) The motor ball screw application box can simulate real-life scenarios, allowing students to receive training in a close-to-actual working environment. (6) The motor ball screw application box can provide a systematic training course covering the basic knowledge of safety facilities, operation methods, maintenance and other aspects.
2. Technical Specifications
2.1 Basic Technical Parameters
|
Working power supply |
Single-phase three-wireAC220V/50Hz |
|
Ambient temperature |
-10℃～+40℃ |
|
Ambient humidity |
＜85%（25℃） |
2.2 Equipment Parameters
|
Dimensions |
480mm*320mm*260mm |
|
Weight |
20kg |
3. Product Component Names and Functions
3.1 Device Main Body
|
NO. |
Name |
Qty. |
|
1 |
Power module |
1 |
|
2 |
CPU module |
1 |
|
3 |
I/O mixed module |
1 |
|
4 |
Positioning module |
1 |
|
5 |
Ethernet communication module |
1 |
|
6 |
Mitsubishi HMI |
1 |
|
7 |
PLC input terminal |
8 |
|
8 |
PLC output terminal |
7 |
|
9 |
Positioning module signal terminal |
20 |
|
10 |
COM1 terminal |
1 |
|
11 |
12V/24VDC terminal |
1 |
|
12 |
COM2 terminal |
1 |
|
13 |
HMI power input |
3 |
|
14 |
Power module terminal |
4 |
|
15 |
USB port |
1 |
|
16 |
HMI power input |
3 |
|
17 |
DC 24V power output |
3 |
|
18 |
Power switch |
1 |
|
NO. |
Name |
Qty. |
|
1 |
Left |
1 |
|
2 |
Origin |
1 |
|
3 |
Right |
1 |
|
4 |
VCC |
1 |
|
5 |
GND |
1 |
|
6 |
PUL |
2 |
|
7 |
DIR |
2 |
|
8 |
EVA |
2 |
|
9 |
Power input terminal |
2 |
|
10 |
Stepper driver |
1 |
|
11 |
Stepper motor |
1 |
|
12 |
Proximity switch |
3 |
3.2 Equipment accessories
|
NO. |
Name |
Qty. |
|
1 |
1-meter red 2mm electrical safety cable |
10 |
|
2 |
1-meter blue 2mm electrical safety cable |
5 |
|
3 |
Power cord |
1 |
|
4 |
1-meter yellow 2mm electrical safety cable |
5 |
|
5 |
1-meter black 2mm electrical safety cable |
10 |
|
6 |
1-meter green 2mm electrical safety cable |
10 |
|
7 |
USB |
1 |
|
8 |
Network cable |
1 |
|
9 |
USB cable |
1 |
3.3 Equipment screen
|
NO. |
Name |
Qty. |
|
1 |
Speed Display |
1 |
|
2 |
10,000 Speed Setting Button |
1 |
|
3 |
20,000 Speed Setting Button |
1 |
|
4 |
30,000 Speed Setting Button |
1 |
|
5 |
Right Turn Button |
1 |
|
6 |
Left Turn Button |
1 |
|
7 |
Home Button |
1 |
|
8 |
Stop Button |
1 |
|
9 |
Right Limit Indicator |
1 |
|
10 |
Left Limit Indicator |
1 |
|
11 |
Home Indicator |
1 |
4. Product Teaching Experiment List
(1) Software Installation and Communication
(2) Equipment Basic Experiment
